Description

Model No.BT-8A-
ApplicationsPowder:seasoning powder, food additives, chemical raw materials, flour, etc
Pouch SizeWidth: 100-240mmLength:120-350mm
Filling WeightMax 1000g/bag
Filling Speed30-60bags/min(filling speed depend on the pouch type and pouch size)
Pouch MaterialSingle-PE, PE compound materials, CPP composite material, Aluminum foil, etc
Pouch typesFlat bag,stand bag,zipper bag,special-shaped bag
Machine MaterialMachine base and appearance parts:SUS304/SUS 316
Power380v, 3phase; 50/60HZ, 3.8KW
Air Compression500N Litre/min, 6kg/cm2
Size of Machine(mm)L2700xW2100xH1800
Weight of MachineAbout 2600kg

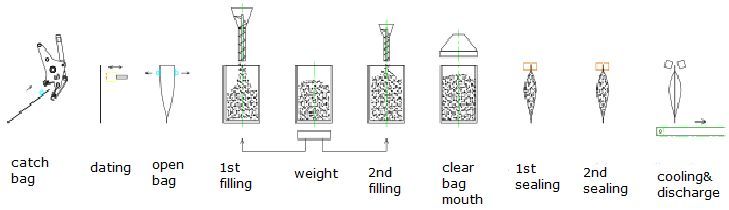

bag giving→date coding →bag opening →filling and vibrating 1→filling and vibrating2→bag mouth cleaning→heat sealing 1→heat sealing 2→forming and output

POWDER (2).jpg


POWDER (1).jpg


  • A powerful function of digital intelligent drive with automatic detection and display system

  • Large colorful touch screen :adjust packaging bag size, packaging speed, sealing temperature and so on automatically by inputting corresponding information on it, and take detection each station automatically.

  • Provide automatic warning and display the reason when any fault on machine or working environment on screen, to reduce staff maintenance difficult.

  • Machine is equipped with a testing system, which can truly achieve “no bag – no filling – no sealing”. And the reason will be shown on the touch screen.

  • Good Waterproof :after your production ,you can use the water to clean the packaging machine directly if necessary.

  • High accuracy, strong applicability
