BT-10T TL160

Contact: Wendy

E-mail: beitesales@beitepack.com

Phone: +86 159 5329 0077

Fax: 0532-88453867

Description

Technical Parameters
Model No.BT-10T TL160
ApplicationsMixture of solid&liquid
Pouch SizeWidth: 160-300mmLength:180-500mm
Filling WeightMax 5000g/bag
Filling Speed20-40 bags/min(filling speed depend on the pouch type and pouch size)
Pouch MaterialSingle-PE, PE compound materials, CPP composite material, Aluminum foil, etc
Pouch typesFlat bag,stand bag,zipper bag,special-shaped bag
Machine MaterialMachine base and appearance parts:SUS304/SUS 316
Power380v, 3phase; 50/60HZ, 4.5KW
Air Compression500N Litre/min, 6kg/cm2
Size of Machine(mm)L3400xW2700xH1800
Weight of MachineAbout 2200kg


Application

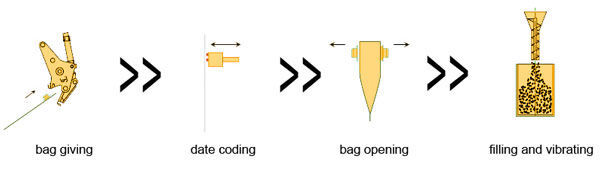

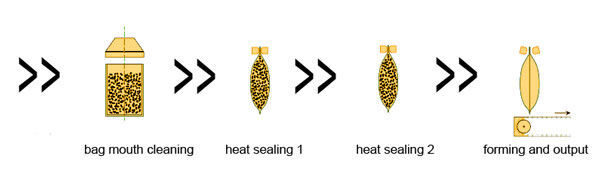

Work process:

bag giving→date coding →bag opening →filling and vibrating →bag mouth cleaning→heat sealing 1→heat sealing 2→forming and output

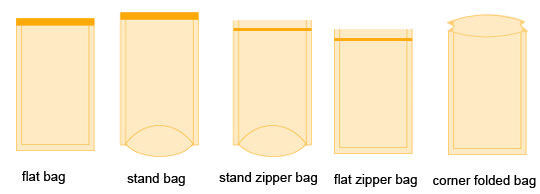

Bag type:


Character:

  • Digital drive, self-diagnostic display system and Versatility.
  • Large color touch screen: you just need to choose relevant products/ pouch size/pouch weight on it, will automatically adjust and take detection.
  • Provide automatic warming and display the reason when any fault on screen, reduce staff maintenance difficulty
  • Automatically add lubricating oil intelligently, and equipped with the function of ribbon code printer detection.
  • Machine is equipped with a testing system, which can truly achieve “no bag – no filling – no sealing” and high yield of packaging.
  • Equipment can be washed with water directly after production.
